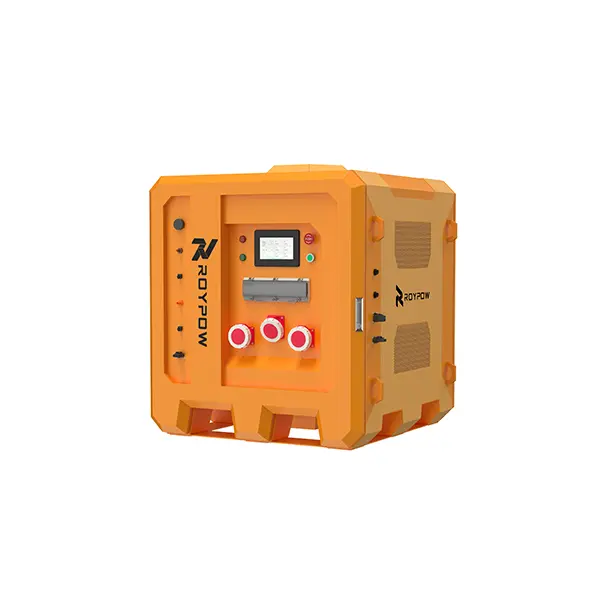

Roypow PC15KT
The ROYPOW PC15KT Mobile Energy Storage System delivers temporary power wherever fast deployment and clean electricity are needed. As a mobile power solution built into a compact cabinet, it offers reliable output, flexible charging options, and intelligent system control. With hybrid power compatibility, PC15KT seamlessly integrates battery storage with generators and solar arrays for efficient off-grid and remote applications.
| Brand: Roypow |
AC Output (Discharging)
Rated Power | 15 kW (90 kW / 6 in Parallel) |
Rated Voltage / Frequency | 380 V / 400 V 50 / 60 Hz |
| Rated Current (A) | 21.8 |
Single-Phase | 220V / 230V AC, Rate power 5KW; Max 7.5KW @ 1 hour |
| Rated Bypass Power (kVA) | 22.5 |
AC Connection | 3W+N+PE |
Overload Capacity | 120% @10min / 22kW @10S |
AC Input (Charging)
| Rated Power (kW) | 15 |
Rated Voltage / Current | 380 V / 400 V 22.5 A |
| Rated Input Apparent Power (KVA) | 22.5 |
Single Phase / Current | 220 V / 230 V 22 A (Optional), Single phase to three phases converter (optional accessory) |
THDI | ≤3% |
AC Connection | 3W+ N+PE |
Battery
-
Battery Chemistry
LiFePO4
DoD
90%
Rated Capacity
33 (Max. 198 / 6 in Parallel) Voltage
550 ~ 950 VDC
DC Input (PV)
| Max. Power (kW) | 30 |
| MPPT Voltage Range | 160 ~ 950 V |
| Max. Input Current (A) | 30 / 30 |
| Number of MPPT | 2 |
Number of String per MPPT | 1 |
| Start-up Voltage (V) | 180 |
Physical
Ingress Rating | IP54 |
Scalability | Max. 6 in Parallel |
Relative Humidity | 0 ~ 100% Non-condensing |
Fire Suppression System | Hot Aerosol (Cell & Cabinet) |
Max. Efficiency | 98% (PV to AC); 94.5% (BAT to AC) |
Topology Operating Ambient | Transformerless |
Temperature | -20 ~ 50℃ (-4 ~ 122℉) |
Noise Emission (dB) | ≤ 45 |
Cooling | Natural Cooling |
Altitude (m) | 4000 (>2000 Derating) |
Weight (kg) | 670 / 1477 |
| Dimensions (LxWxH) (mm / inch) | 1040 x 1092 x 1157 / 40.94 x 42.99 x 45.55 |
Standard Compliance | EN IEC 61000-6-2/4, EN IEC62109-1/2 |
