Foxtheon M100

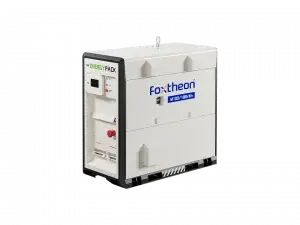

EnergyPack M100
The EnergyPack M100 is a versatile off grid hybrid battery energy storage system designed to integrate seamlessly with generators, photovoltaic (PV) systems, and other clean energy sources, providing reliable microgrid solutions. It significantly reduces fuel usage and serves as a central controller for efficient energy distribution, ensuring reliable and sustainable power supply.
Performance
- Nominal Rated Power: 100 kVA
- Overload Power (60s): 125 kVA
Mechanical
- Dimensions (L x W x H): 2300 x 1150 x 2200 mm
- Weight: 2700 kg
Electrical
- Rated Voltage: (AU/EU) 415 VAC/400VAC
- Frequency: 50/60 Hz
- Power Factor Range: 0 ind. …1 … 0 cap
- Nominal AC Current: (AU/EU) 139 A/144A
- Maximum AC Current (60s): (AU/EU) 173 A/180A
Battery
- Cell Chemistry: LiFePO4
- Nominal Capacity: 188 kWh
- Effective Capacity: 169 kWh
- Recharging Time: 3 hours @ 60 kW
- Depth of Discharge (DoD): 90%
- Discharging Time: 1.8 hours @ 100 kW
- Temperature Control: Liquid cooling / PI heating film
Environmental
- Protection Class: IP54
- Corrosion Protection: C3 (C5M)
- Operating Temperature: -20 to +50 ℃
- Humidity: 0-95% (non-condensing)
- Maximum Operating Altitude: 3000 m
- Sound Power Level: <50 dB(A) @1m
| Renting: No |
| Deliver Time: est. 2 weeks |
| Brand: Foxtheon |
